THIS IS A CRITICAL ALERT: The new Omnijet CA, 3-Axis Waterjet assembly is replacing the current OmniJet Waterjet assembly on all new production.

Jet Edge issues recommended equipment updates through the use of Technical Bulletins.  In order to keep your equipment safely operating at all times, it is strongly recommended that updates be implemented in a timely manner.

Click here to download the 3-Axis Waterjet 26-01 TB Technical bulletin.

PURPOSE

The new OmniJet CA, 3-Axis WaterJet assembly is replacing the current OmniJet WaterJet assembly on all new production.

SYSTEMS

All 3-Axis Mid Rail and High Rail Waterjet systems.

DETAILS

The Omnijet CA, 3-Axis Waterjet, rated up to 75k psi, incorporates an improved design and its replacing the OmniJet III.

The OmniJet, CA has a larger actuator diameter of 3.5 inches, while the OmniJet III has an actuator diameter of 3.38 inches. The image below shows a comparison of the dimensions of both the OmniJet III and the OmniJet CA.

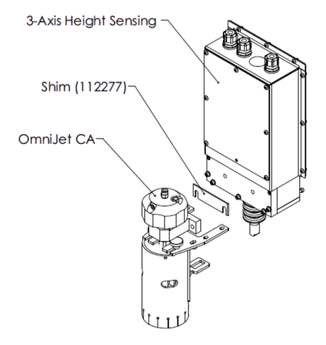

Please be aware that shims may be necessary (to be purchased separately) to accommodate size differences when mounting the cutting head, particularly for 3-axis height assemblies.

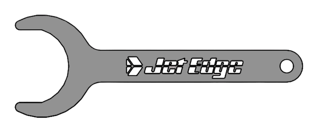

OmniJet, CA is also easily serviceable with an actuator wrench.

BENEFIT

Our field studies have shown the new cutting head design delivers higher quality edge finish and faster water on/off cycle times, and with multiple air inlets allow for greater flexibility in hose routing.

The 60k and 75k units both use the same actuator, which greatly simplifies the line.

The orifice options, mount options, and on-off repair kits do not change and are interchangeable between the two assemblies.

ORDER NOW!

Call 1-800-JET-EDGE and ask for Parts Sales to learn more about this Technical Bulletin or email parts@jetedge.com with your questions. To view parts lists, schematics, and place online orders, visit our e-Commerce store. You must be a registered Jet Edge Business Partner to access the site.

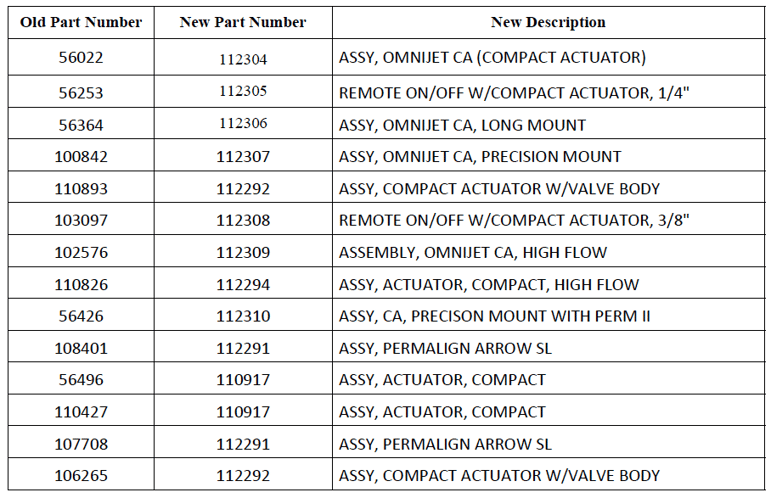

OmniJet CA Reference Chart
